Bearings

The use of the highest-quality components is the basis for outstanding performance as well as long duration for GMN products.

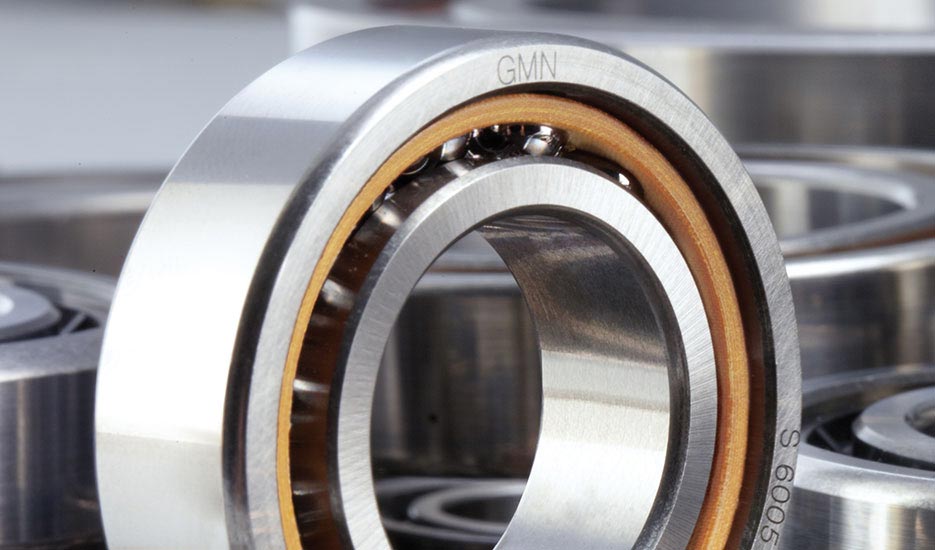

GMN high-precision ball bearings

Nearly all spindles are equipped with GMN high-precision ball bearings. These provide reliable operational security, quiet running and long lives.
Our high-precision ball bearings are manufactured in precision classes P4/ABEC7 and P2/ABEC9. Our internal HG (high-precision) precision class and UP (ultra-precision) set standards of the highest precision with low measurement tolerances.





Sp_KH_La_HochKugellager_2

GMN hybrid ball bearings

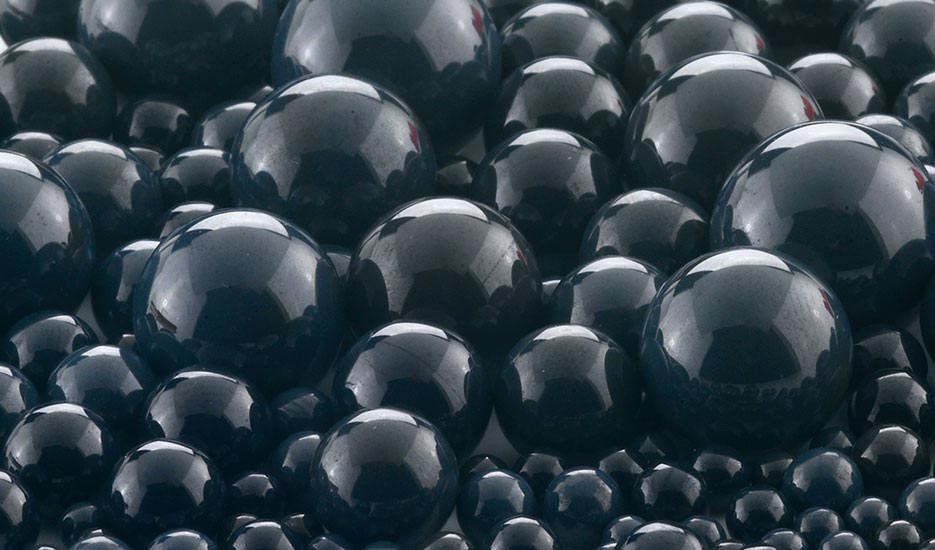

Hybrid ball bearings are a material combination of bearing steel (inner and outer rings) and ceramic (balls).

The material characteristics of ceramic balls provide significant increases in performance in machine operation in hybrid bearings in comparison to steel balls, especially under critical conditions.

Material

  • Ceramic: Silicon nitride Si3N4

Material properties

  • Low affinity to 100Cr6
  • Low coefficient of friction
  • Low thermal conductivity
  • Corrosion resistance
  • No magnetism
  • Electrically insulating



Sp_KH_La_Hybrid-Kugeln_935x550

Advantages

  • Longer service life

Hybrid bearings achieve more than twice the life of steel bearings due to their characteristic material properties. Machine run times are significantly increased.

  • High rotation speed

Due to their tribological properties and lower mass forces – compared to bearings with steel balls – speed increases of up to 30% can be achieved with hybrid ball bearings.


sp_kh_Lagerung1_935x650_englisch

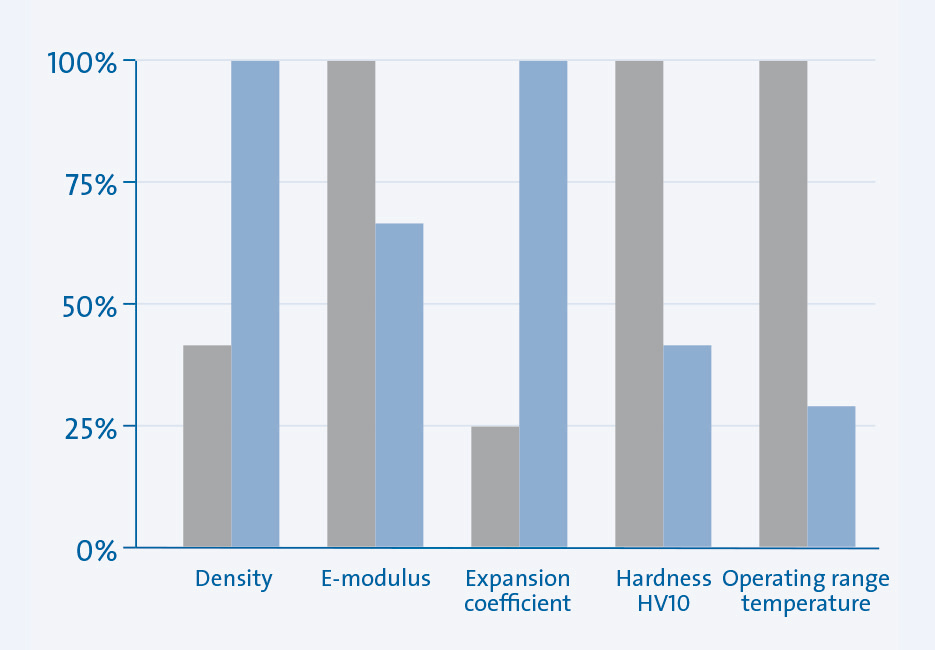

Characteristics of ceramic (silicon nitride) Si3N4 and rolling bearing steel (chrome steel) 100Cr6

  • More cost-effective lubrication

The maximum speed for grease and oil lubrication is increased. Thus one can frequently use grease lubrication instead of more expensive oil lubrication.

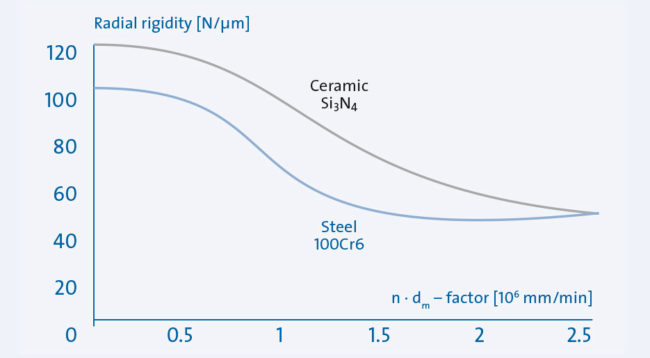

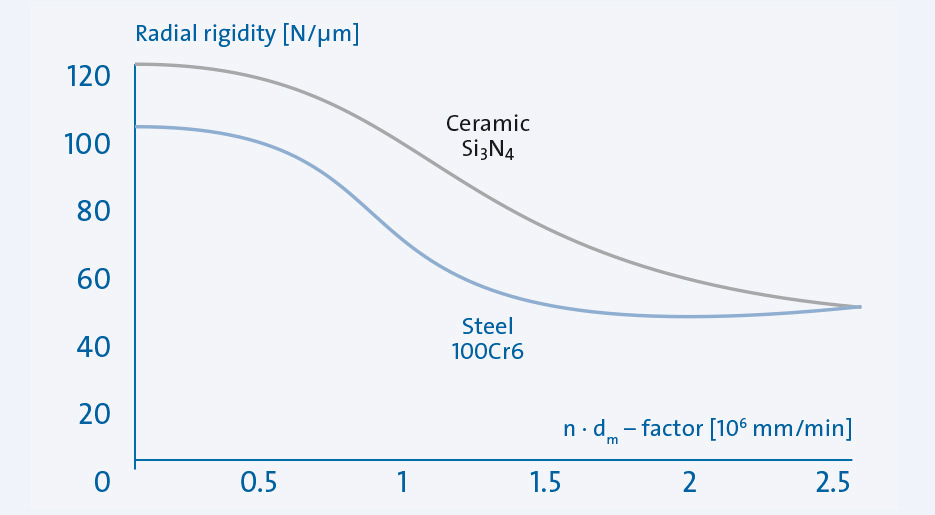

  • Greater stiffness

Due to its material properties, radial and axial stiffness are improved. The benefits are increased precision and displacement at critical own frequencies.

Sp_KH_Lagerung3_935x515

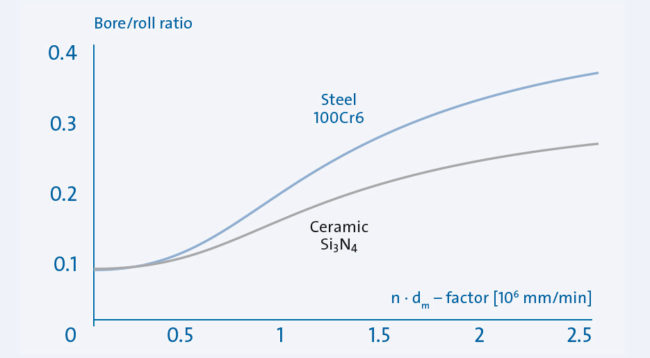

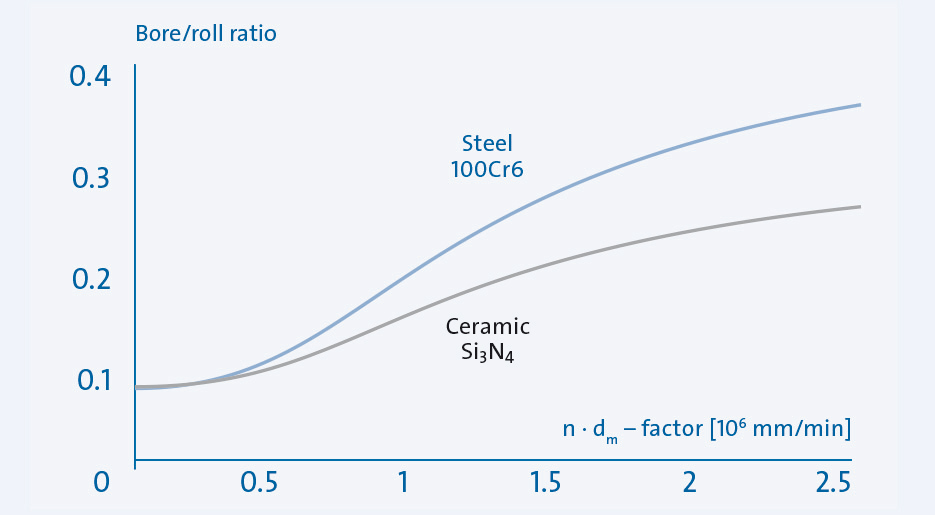

  • Higher machining accuracy

Higher bearing stiffness, reduced thermal expansion and lower vibration excitation allow maximum machining accuracy.

Sp_KH_Lagerung2_935x515
