Tool loading

Provides secure tool clamping as well as a high degree of concentricity for automatic or manual change.

Tool holder for manual tool change

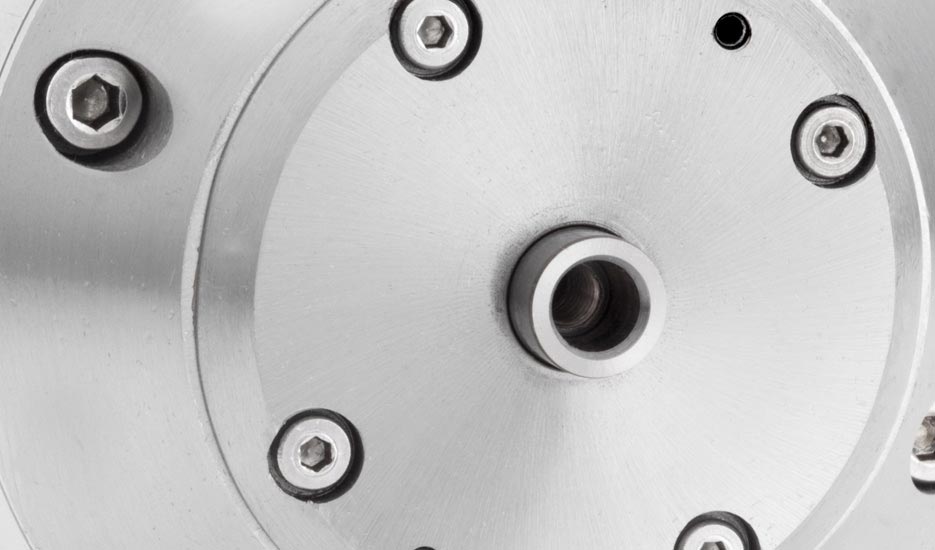

GMN standard tool interface:
Internal taper with a flat contact face

Due to the very high maximum speeds in the UHS series, a GMN standard tool interface is selected with an internal taper and flat contact face and insertion threads, which provides secure connection between the shaft and the tool over the entire speed range of the respective spindle.

Sp_KH_WA_InnekegelPlananlage

GMN standard tool interface:

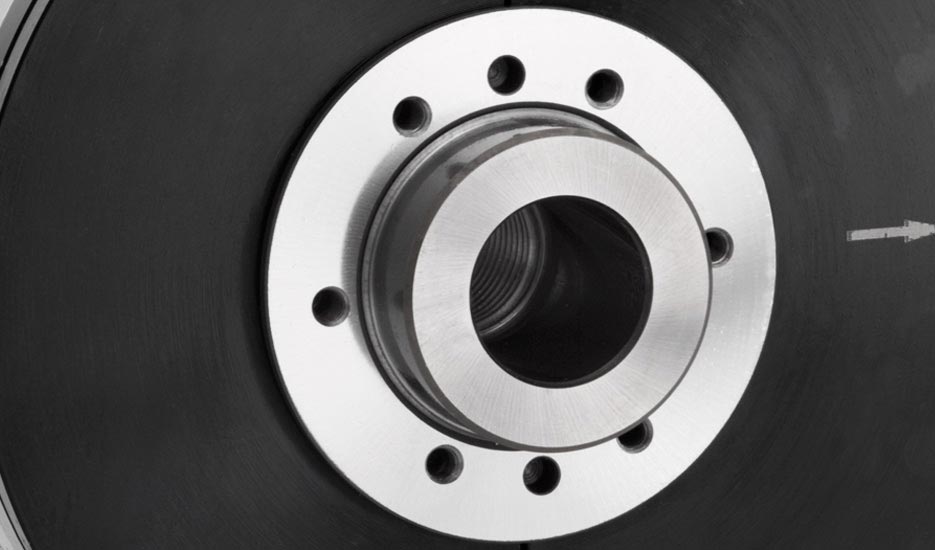

Fit bores with flat contact face

GMN‘s high-speed series HS, HV-X and HSX spindles are fitted with standard tool interface, fit bores and a flat contact face, and insertion threads which have been proven for decades.

Sp_KH_WA_PassbohrPlananlage

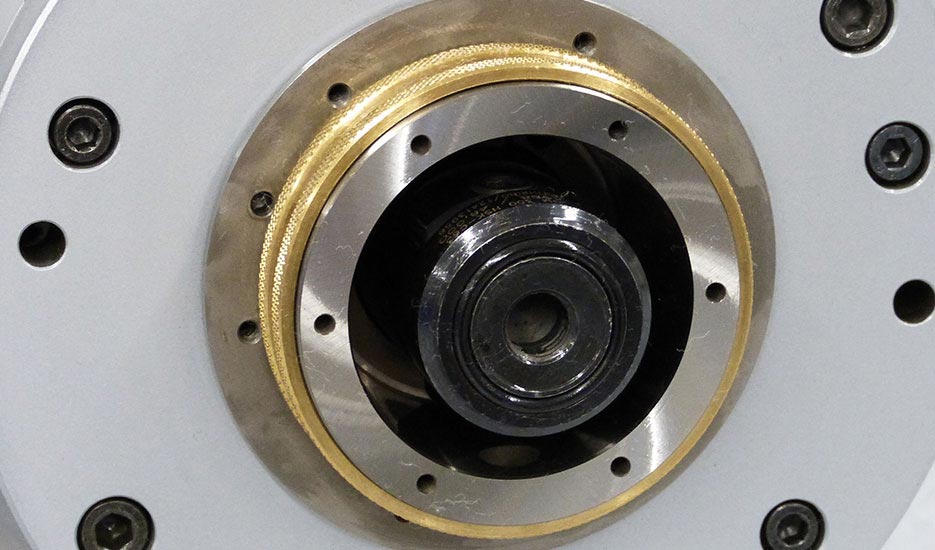

Taper hollow shaft with a flat contact face:
HSK-C as per DIN 69893

The various forms differ in regards to their driver cavity and their attachment system. The C-form was especially developed for use in manual tool changing systems.

Tools with A and C cone hollow shafts can be held in series HSP/HV-P series. HSP/HV-P spindles can be operated in both rotational directions with the HSK interface.



Sp_KH_WA_KegelHohlschaftmitPlananlage_2

Tool interface for automatic tool change

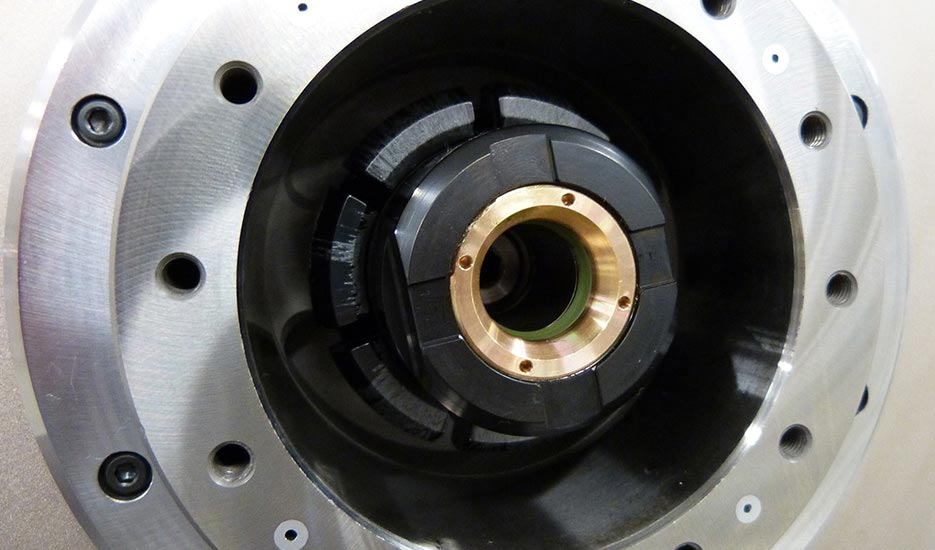

Taper hollow shaft with a flat contact face:
HSK as per DIN 69893

SP_KH_WA_Aut_HSK_935x550

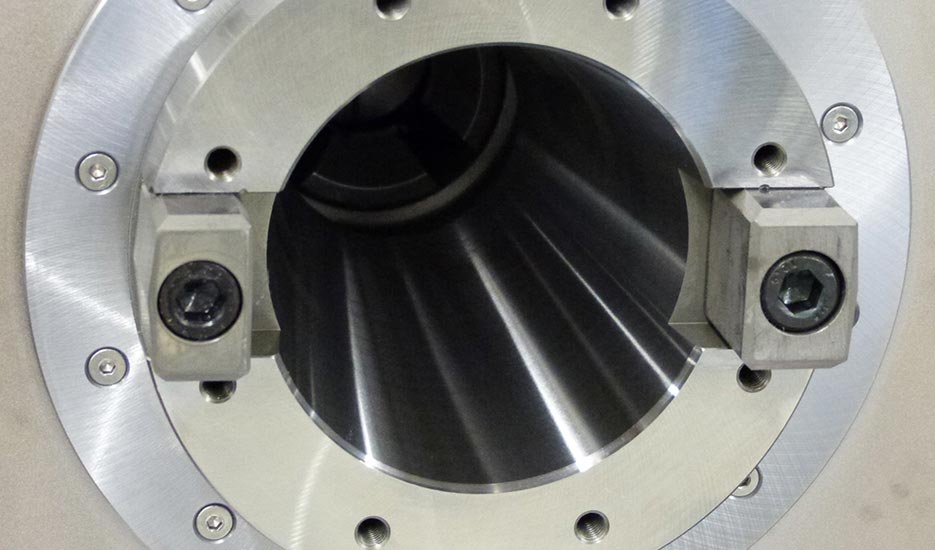

Steep taper shaft with flat contact face:
SK as per DIN 69871



SP_KH_WA_Aut_SK_935x550

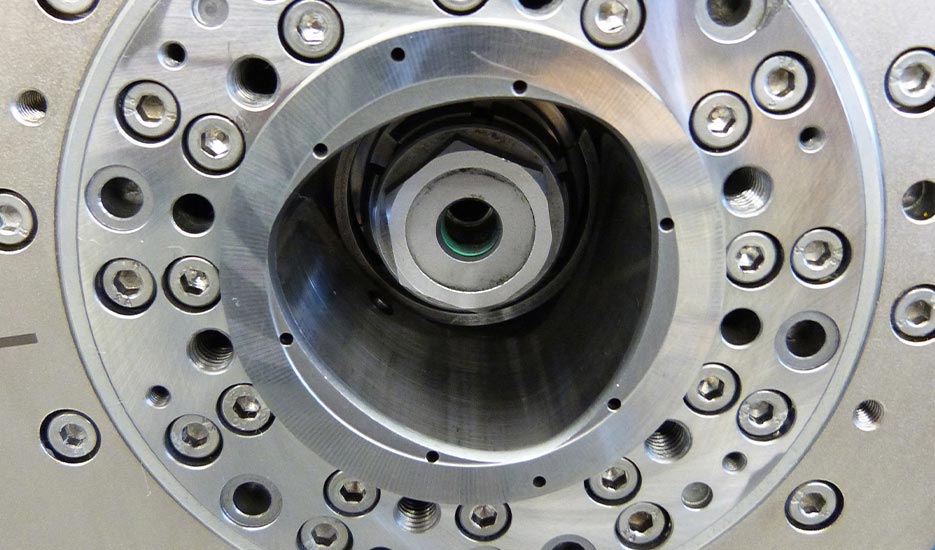

Polygonal hollow-shaft taper with flat contact face:
PSC as per ISO 26623-1

SP_KH_WA_Aut_Capto_935x550
