Dressing spindles

GMN’s MAS series dressing spindles are equipped with a permanent grease-lubricated bearing. This ensures high smoothness and offers outstanding stiffness. The horizontal or vertical installation direction as well as the optional right-hand or left-hand run of the spindle shaft enables compact integration of GMN dressing spindles in existing machining systems.

Series

MAS Series

Powerful dressing spindles for precise profiling and truing of grinding discs.





Technical data:

  • Housing diameter: 80 mm
  • Speed: max. 16.000 RPM
  • Power:  S2 max. 1,37 kW
  • Torque: S2 max. 1,31 Nm
  • Tool interface: Flat layout with a centering diameter
  • Lubrication: Permanent grease lubrication

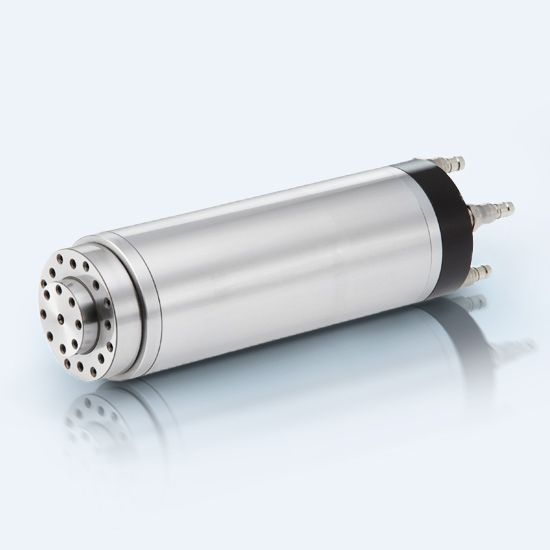

ST_AS_550x550

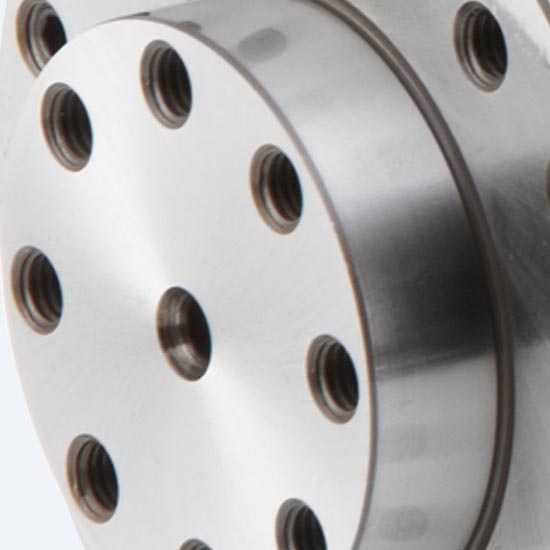

ST_AS_AbrichteSpindel_Detail

GMN A/E-SENSOR

GMN dressing spindles with optional acoustic emission sensor improve machining quality and increase the lifetime of grinding discs.

  • Increase in tools’ use time
  • Reduced maintenance
  • High machining precision
