Tolerance tables

Here, you will find an overview of the tolerances for shaft and housing fits (extract from DIN EN ISO 286-2).

Shaft fits

Fr_Engineering_toleranztabellen_1220x454px

(extract from DIN EN ISO 286-2)

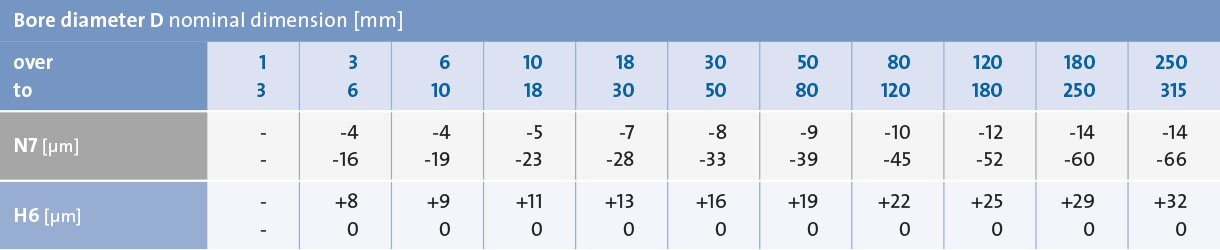

Housing fits

Fr_Engineering_toleranztabellen2_1220x250px

(extract from DIN EN ISO 286-2)
