Freewheel clutch insert elements with rings

GMN freewheel clutch insert elements with rings are optionally available with integrated meander or tension spring. The FR and FRN series are designed for installation on non-hardened and unground connecting parts. GMN freewheel clutch insert elements with rings are suitable for either oil or grease lubrication. All GMN freewheel clutch insert elements with rings can be used as indexing clutches, backstops or as overruning clutches.

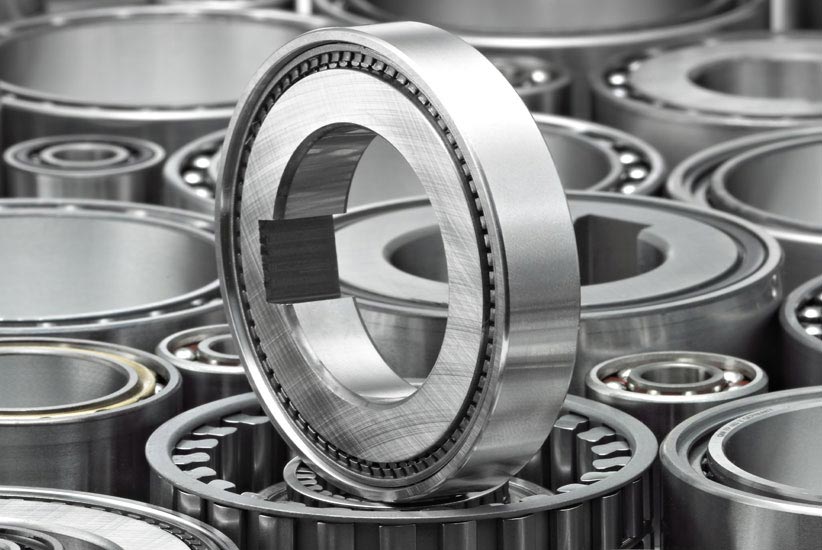

Modul30a_EELR_862x550

Freewheel clutch insert element FR

The FR series contains freewheel clutch insert elements with rings.



Characteristics:
  • Width: 12 mm
  • Operating temperature: max. 140 °C (higher temperatures on request)
  • Lubrication: oil or grease lubrication, delivered with corrosion protection, operative grease filling on request

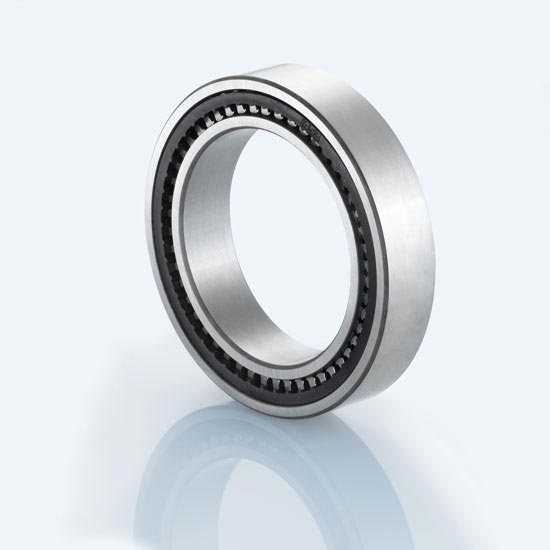

fr-453geschl

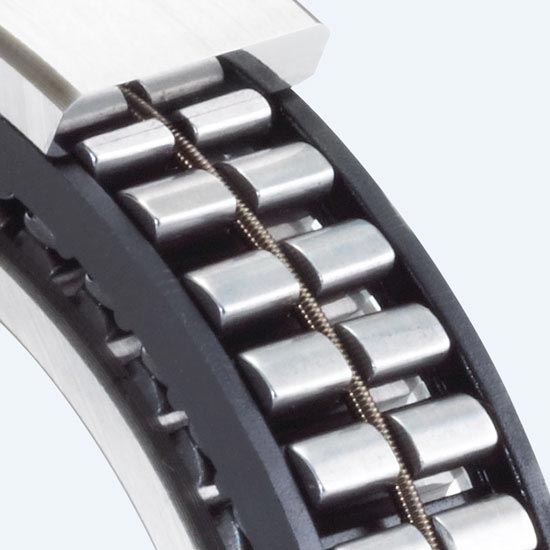

FL_Detail_FELR_1

Components

  • Insert element*

FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

Bearing steel, hardened and ground

  • Inner ring

Press fit

  • Outer ring

Press fit

  • Ball bearing

  • Roller bearing

  • Lubrication

  • Seal

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

10 - 20 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Item no.
Data sheets
FR 422 M
10
26
12
60
10100
0.0289
300587
FR 422 Z
10
26
12
53
10100
0.0289
300588
FR 427 M
15
31
12
92
7400
0.0399
300591
FR 427 Z
15
31
12
83
7400
0.0399
300592
FR 432 M
20
36
12
128
5900
0.0483
300593
FR 432 Z
20
36
12
117
5900
0.0483
300594

25 - 35 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Item no.
Data sheets
FR 437 M
25
41
12
169
4800
0.0566
300595
FR 437 Z
25
41
12
154
4800
0.0566
300598
FR 442 M
30
46
12
212
4200
0.0658
300599
FR 442 Z
30
46
12
198
4200
0.0658
300600
FR 448 M
35
53
12
272
4300
0.0883
300602
FR 448 Z
35
53
12
248
4300
0.0883
300603

40 - 60 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Item no.
Data sheets
FP 453 M
40
58
27
343
3400
0.21
300683
FP 453 Z
40
58
27
314
3400
0.2044
300684
FP 463 M
50
68
27
461
2900
0.254
300685
FP 463 Z
50
68
27
428
2900
0.254
300687
FP 473 M
60
78
27
588
2500
0.294
300691
FP 473 Z
60
78
27
543
2500
0.294
300693

Freewheel clutch insert element FRN

The FRN series contains freewheel clutch insert elements with rings and keyway connection on the inner ring.

Characteristics:
  • Width: 12 mm
  • Operating temperature: max. 140 °C (higher temperatures on request)
  • Lubrication: oil or grease lubrication, delivered with corrosion protection, operative grease filling on request

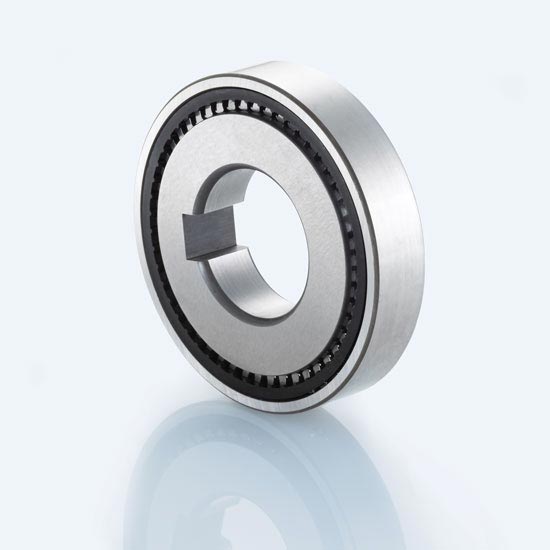

frn-453geschl
FL_Detail_FELR_1

Components

  • Insert element*

FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

Bearing steel, hardened and ground

  • Inner ring

Keyway per DIN 6885, Sheet 1, Tolerance: P9 with back clearance

  • Outer ring

Press fit

  • Ball bearing

  • Roller bearing

  • Lubrication

  • Seal

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

10 - 15 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Keyway width
b
mm
Keyway depth
t
mm
Item no.
Data sheets
FRN 427 M
10
31
12
92
7400
0.0489
3
1,4
300625
FRN 427 Z
10
31
12
83
7400
0.0489
3
1,4
300626
FRN 432 M
12
36
12
128
5900
0.0662
4
1,8
300628
FRN 432 Z
12
36
12
117
5900
0.0662
4
1,8
300629
FRN 437 M
15
41
12
169
4800
0.0853
5
2,3
300630
FRN 437 Z
15
41
12
154
4800
0.0853
5
2,3
300631

20 - 30 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Keyway width
b
mm
Keyway depth
t
mm
Item no.
Data sheets
FRN 442 M
20
46
12
212
4200
0.1
6
2,8
300633
FRN 442 Z
20
46
12
198
4200
0.1
6
2,8
300634
FRN 453 M
25
58
12
321
3400
0.1673
8
3,3
300636
FRN 453 Z
25
58
12
294
3400
0.1605
8
3,3
300637
FRN 459 M
30
64
12
332
3000
0.1968
8
3,3
300639
FRN 459 Z
30
64
12
353
3000
0.1968
8
3,3
300640

35 - 45 mm Inner diameter

SHOW ALL AGAIN
Data sheets
CAD-Files
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Weight
kg
[kg]
Keyway width
b
mm
Keyway depth
t
mm
Item no.
Data sheets
FRN 463 M
35
68
12
427
2900
0.2078
10
3,3
300641
FRN 463 Z
35
68
12
394
2900
0.2078
10
3,3
300642
FRN 470 M
40
75
12
506
2600
0.2478
12
3,3
300644
FRN 470 Z
40
75
12
466
2600
0.2478
12
3,3
300645
FRN 473 M
45
78
12
539
2500
0.26
14
3,8
300647
FRN 473 Z
45
78
12
496
2500
0.26
14
3,8
300649

Specific installation instructions for freewheel clutch insert elements with rings

INSTALLATION INSTRUCTIONS FOR THE FR AND FRN SERIES

  • Installation tolerances

Shaft h5; hub H6 (FR) /

shaft js6 (k5); hub H6 (FRN)



  • Constraints

The freewheel clutch insert element requires axial constraints on both sides.



  • Mating parts

Hardening and grinding of the mating parts are not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch’s rings before making the press fit.



  • Bearing

Freewheel clutch insert elements are not self-centering. External bearing support to define the gap between mating parts (inner and outer rings) is necessary.

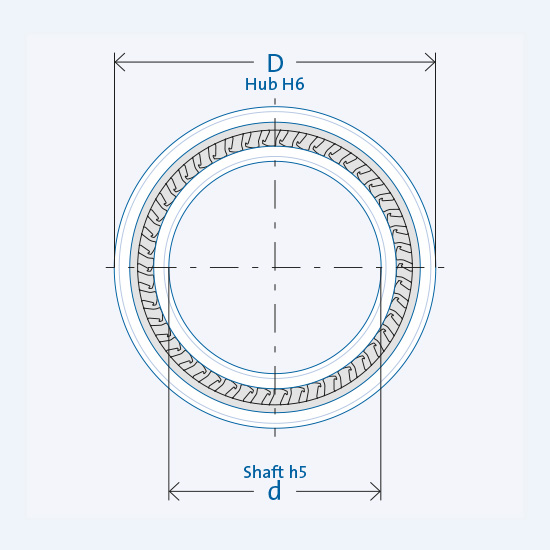

Fr_Baureihen_FR_550x550
Series FR

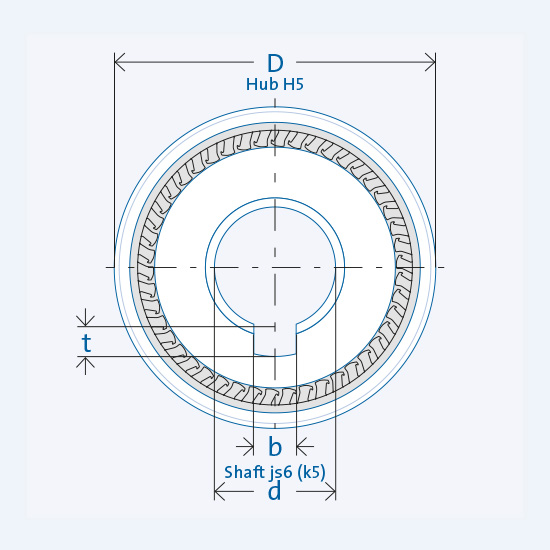

Fr_Baureihen_FRN_550x550
Series FRN
