High-performance milling spindles with integrated motor

GMN high-performance milling spindles with integrated asynchronous or synchronous motors provide powerful and therefore economic machining. Using an oil-air or grease permanent lubrication, the spindle bearings operate in a secure fashion.

Series without shaft lock

HGC series

Customer-specific design for all applications.



Technical data:

  • Housing diameter: 80 – 400 mm
  • Speed: max. 30.000 RPM
  • Power: S1 max. 80 kW
  • Torque: S1 max. 300 Nm
  • Motor: Asynchronous or synchronous motor
  • Tool interface: HSK-A/-B/-E/-F/-T/, SK, BT, PSC
  • Lubrication: Oil-air lubrication or permanent grease lubrication
HGC_550x550

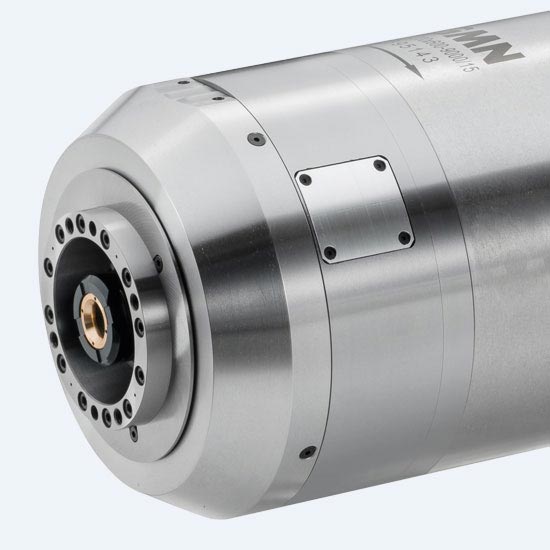

HGC_DETAIL_550x550

Series with automatic shaft lock

HGT series

Customer-specific design for all applications with GMN shaft lock for lathe work.



Technical data:

  • Housing diameter: 120 – 400 mm
  • Speed: max. 30.000 RPM
  • Power: S1 max. 80 kW
  • Torque: S1 max. 300 Nm
  • Motor: Asynchronous or synchronous motor
  • Tool interface: HSK-A/-B/-E/-F/-T/, SK, BT, PSC
  • Lubrication: Oil-air lubrication or permanent grease lubrication

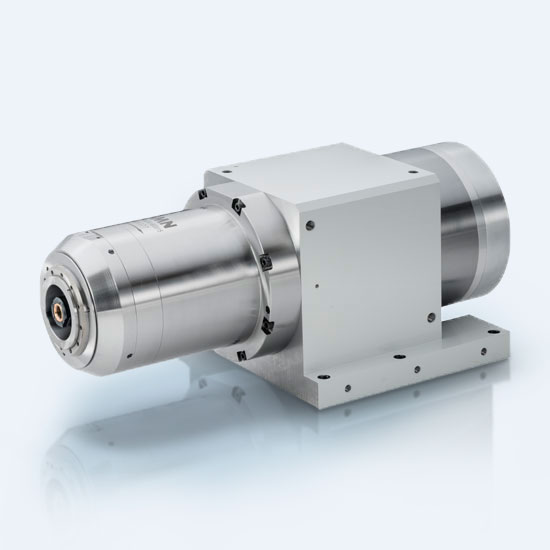

HGT_550x550

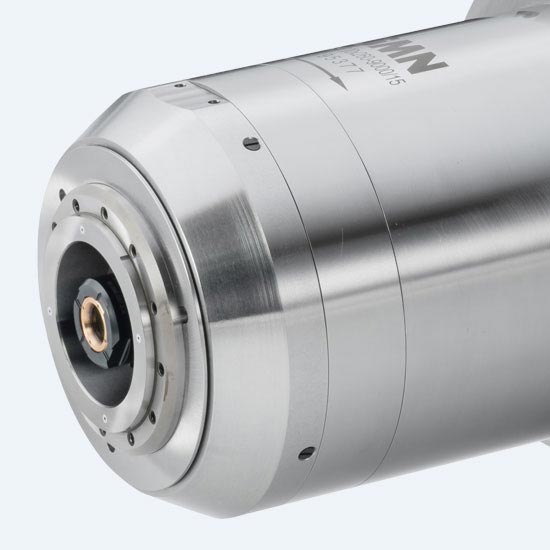

HGT_Detail_550x550
