Drive systems

GMN motor spindles are operated by means of inverters in an uncontrolled or controlled manner, each with a speed sensor (RPM sensor) or a rotary encoder.

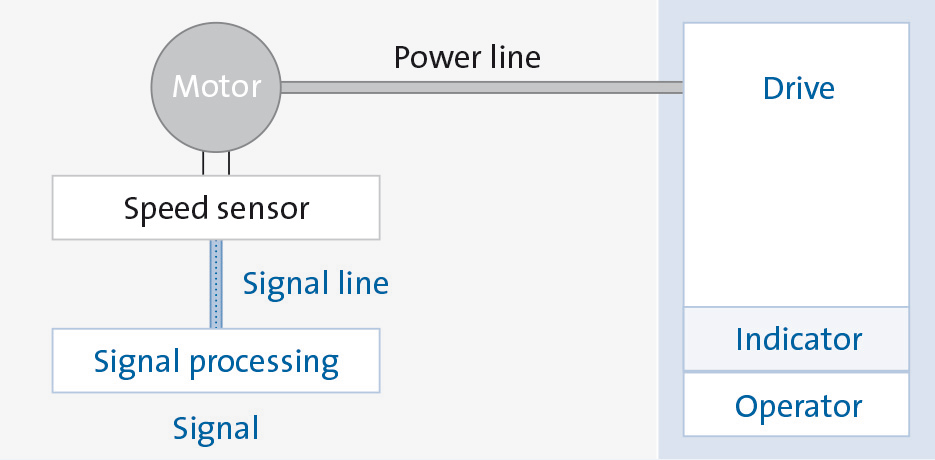

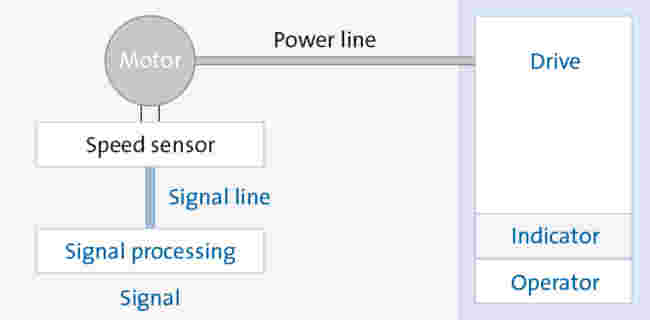

Drive without rotary encoder

sp_kh_Antriebssystem1_935x460

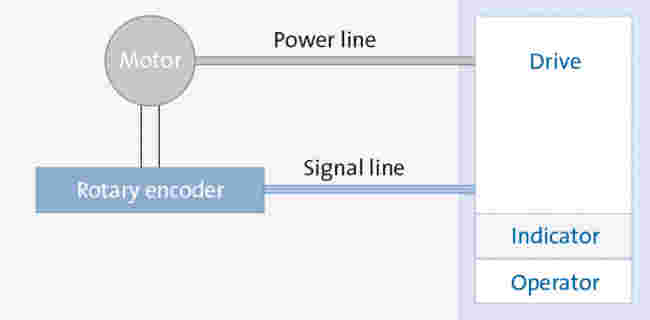

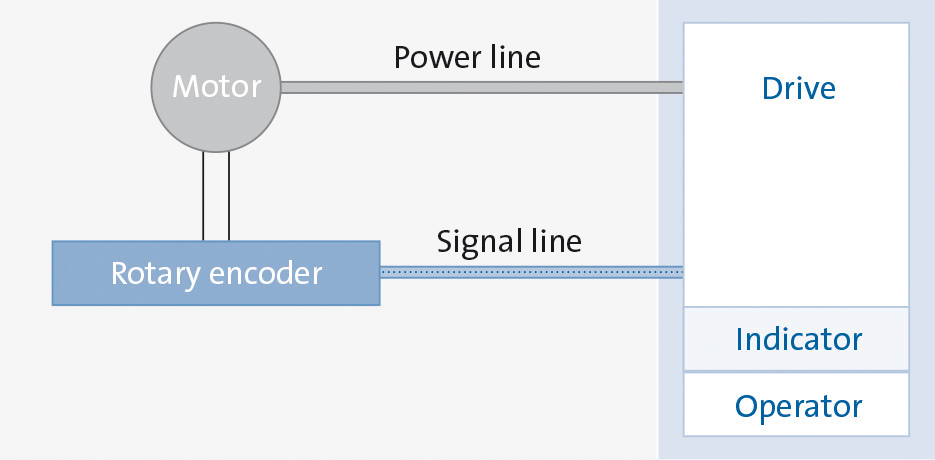

Drive with rotary encoder (C-axis operation)

sp_kh_Antriebssystem2_935x460

Drives without controllers: Frequency control with provision of voltage from the U/F characteristics

  • Output frequency up to 3000 Hz1)
  • Setting range to about 1:10
  • Acceleration and deceleration times in the range 10 sec.
  • Position the shaft in a fixed position
  • Speed monitor or “speedometer box” required
  • Messages from “sunk” and “load limit” with “event log” optional module



sp_kh_Antriebssystem3_935x380

Drives without controllers: Frequency control with provision of voltage from the U/F characteristics

Drives with controllers: Field-oriented control

  • Output frequency up to 1400 Hz1)
  • In setting range 1:10
  • Speed constancy approx. 0.5%
  • Field-oriented rule algorithm
  • Acceleration and deceleration times in range 1 sec.



sp_kh_Antriebssystem4_935x380

Drives with controllers: Field-oriented control

Drives with controllers: Field-oriented control with C-axis operation rotary encoder

  • Output frequency up to 1400 Hz1)
  • Shaft positioning
  • Acceleration and deceleration times in range 1 sec.







1) Depending on the manufacturer, different maximum output frequencies are possible.

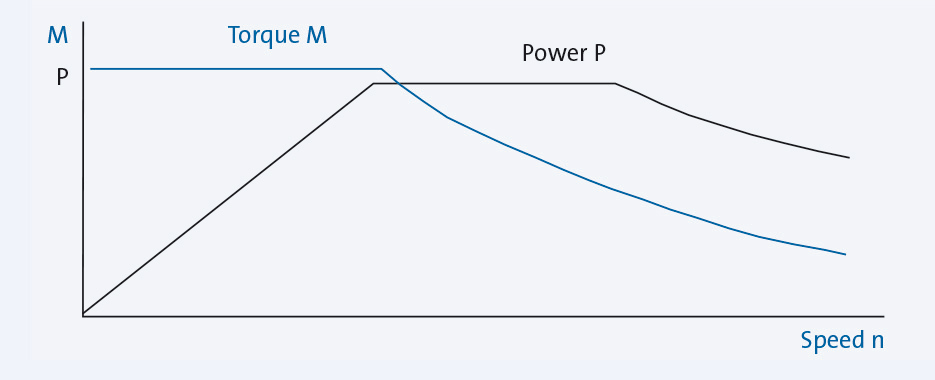

sp_kh_Antriebssystem5_935x380

Field-oriented control with rotary encoder C-axis operation
